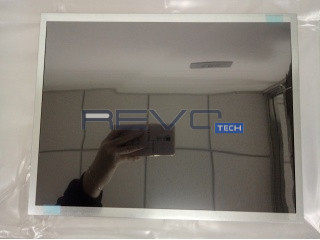

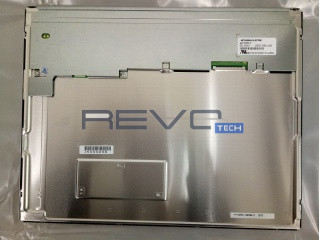

15" Inch TFT-LCD Display
AA150PD13
Mitsubishi

Product description

AA150PD13 is a display manufactured by Mitsubishi. It has a resolution of 1400 x 1050, brightness of 1000 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 5 strings
Baklight Arrangement: 5 rows
Lamp Lifetime (Time to Half Brightness): 100000
Backlight Voltage Minimum: 24
Backlight Voltage Typical: 24
Backlight Voltage Maximum: 24
Backlight Current Minimum (mAh): 150
Backlight Current Typical (mAh): 160
Backlight Current Maximum (mAh): 160
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM10B-SHLS-TF(LF)(SN)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SSRLA-HF16
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1400 x 1050
Dot Pitch: 0.07
Dot pitch vertical: 0.22
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 1000
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 12
Response Time: 12
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.38
Bezel Height: 232.1
Outline Vertical: 255
Outline Depth Typical: 10.5
Outline Depth Max: 11.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 900
Typical Weight: 900
Maximum Weight: 900

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
