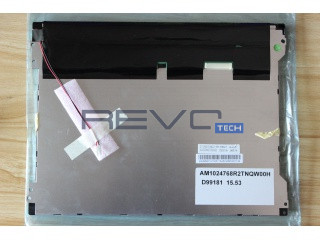

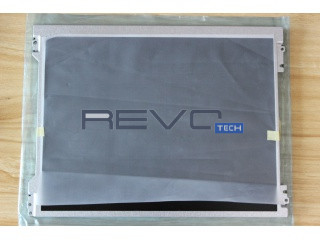

Ampire AM-1024768RTNQW-00H - TFT-LCD 1024 x 768

Product description

AM-1024768RTNQW-00H is a display manufactured by Ampire. It has a resolution of 1024 x 768, brightness of 400 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Backlight Connection: via Connector
Backlight Interface Manufacturer: STM
Backlight Interface Model: MSB24038P5A
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 5
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.83
Signal Interface: Connector
Signal Interface Manufacturer: STM
Signal Interface Model: MSB240420E
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-010D

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 184.32
Outline Vertical: 209
Outline Depth Typical: 6
Outline Depth Max: 9.0000
Mounting: Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 545
Typical Weight: 545
Maximum Weight: 545

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
