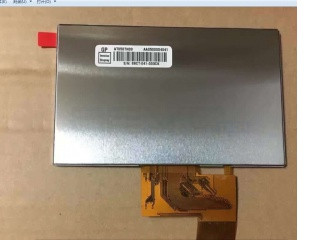

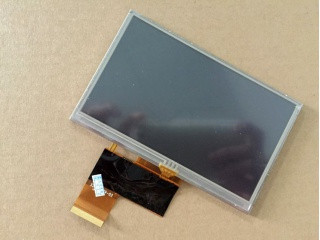

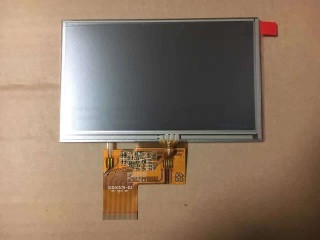

5" Inch TFT-LCD Display

AT050TN33
Innolux

Home
TFT-LCD
Innolux
AT050TN33

5" Inch TFT-LCD Display
AT050TN33
Innolux

Product description

AT050TN33 is a display manufactured by Innolux. It has a resolution of 480 x 272, brightness of 300 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 855
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 6S2P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 18.6
Backlight Voltage Typical: 19.8
Backlight Voltage Maximum: 21
Backlight Current Minimum (mAh): -4
Backlight Current Typical (mAh): 40
Backlight Current Maximum (mAh): 44
Typical Backlight Consumption: 0.79
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Typical LCD Power Consumption: 0.06
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: DRGB-40P1C8B-080A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 272
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 62.83
Bezel Height: 65.85
Outline Vertical: 75.8
Outline Depth Typical: 4.25
Outline Depth Max: 4.4500
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Touchscreen Connection: FPC

Weights specs

Minimum Weight: 83
Typical Weight: 83
Maximum Weight: 83

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
