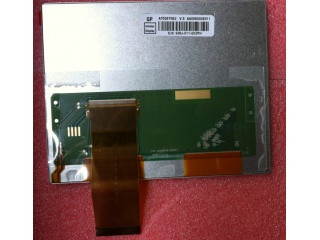

5.6" Inch TFT-LCD Display
AT056TN52 V.3
Innolux

Product description

AT056TN52 V.3 is a display manufactured by Innolux. It has a resolution of 640 x 480, brightness of 200 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 1.05
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S5P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 8.4
Backlight Voltage Maximum: 8.4
Backlight Current Minimum (mAh): -10
Backlight Current Typical (mAh): 100
Backlight Current Maximum (mAh): 110
Typical Backlight Consumption: 0.93
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
LCD Signal AVDD: 5
LCD Signal VGH: 15
LCD Signal VGL: -10
Typical LCD Power Consumption: 0.12
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: DRGB-50P1C8B-110A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 500
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.6
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 84.67
Bezel Height: 87.47
Outline Vertical: 100
Outline Depth Typical: 5.7
Outline Depth Max: 6.0000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 127.5
Typical Weight: 127.5
Maximum Weight: 127.5

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
