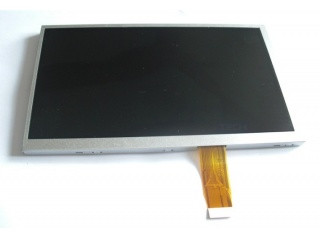

7" Inch TFT-LCD Display
AT070TN07 V.D
Innolux

Product description

AT070TN07 V.D is a display manufactured by Innolux. It has a resolution of 480 x 234, brightness of 200 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 0.86
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S4P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 8.4
Backlight Voltage Maximum: 8.4
Backlight Current Minimum (mAh): -8
Backlight Current Typical (mAh): 80
Backlight Current Maximum (mAh): 88
Typical Backlight Consumption: 0.74
Backlight Driver Board: None

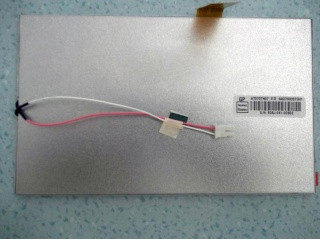

Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: TFT Specific Analog RGB
Typical LCD Power Consumption: 0.11
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 26

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 234
Dot Pitch: 0.11
Dot pitch vertical: 0.37
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 300
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 40
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 15
Response Time: 20
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 86.58
Bezel Height: 89
Outline Vertical: 100
Outline Depth Typical: 5.7
Outline Depth Max: 6.0000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 166
Typical Weight: 166
Maximum Weight: 166

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
