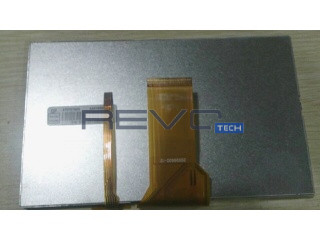

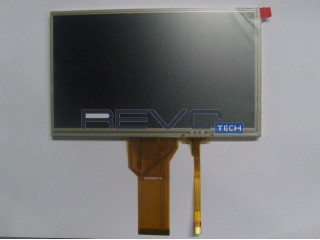

Innolux AT070TN93 - TFT-LCD 800 x 480

Product description

AT070TN93 is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 320 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 1.9
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S9P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 9.3
Backlight Voltage Maximum: 10.2
Backlight Current Minimum (mAh): 170
Backlight Current Typical (mAh): 180
Backlight Current Maximum (mAh): 200
Typical Backlight Consumption: 1.67
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
LCD Signal AVDD: 10.4
LCD Signal VGH: 16
LCD Signal VGL: -7
Typical LCD Power Consumption: 0.23
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: DRGB-50P1C8B-115A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 320
Contrast: 500
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Dithering
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 85.92
Bezel Height: 89.1
Outline Vertical: 100
Outline Depth Typical: 6.7
Outline Depth Max: 7.0000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Touchscreen Connection: FPC

Weights specs

Minimum Weight: 182
Typical Weight: 182
Maximum Weight: 182

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
