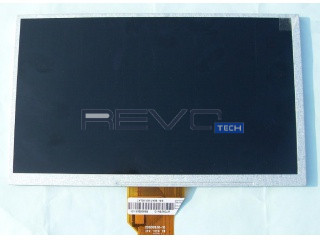

Innolux AT090TN10 - TFT-LCD 800 x 480

Product description

AT090TN10 is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 250 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 2.56
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S11P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 9.3
Backlight Voltage Typical: 9.9
Backlight Voltage Maximum: 10.5
Backlight Current Minimum (mAh): -22
Backlight Current Typical (mAh): 220
Backlight Current Maximum (mAh): 242
Typical Backlight Consumption: 2.2
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: TTL
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 10.4
LCD Signal VGH: 17
LCD Signal VGL: -5
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 0.36
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: DRGB-50P1C8B-115A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 500
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 9
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 111.7
Bezel Height: 114.7
Outline Vertical: 126.5
Outline Depth Typical: 5.9
Outline Depth Max: 6.2000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 253
Typical Weight: 253
Maximum Weight: 253

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
