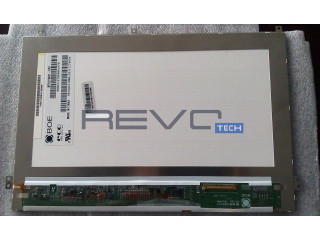

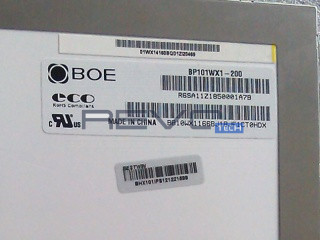

BOE BP101WX1-200 - TFT-LCD 1280 x 800

Product description

BP101WX1-200 is a display manufactured by BOE. It has a resolution of 1280 x 800, brightness of 350 cd/m2 and contrast of 600:1.

Electrical Specs

Total Power Consumption (Watts): 3.1
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 6S6P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 16.8
Backlight Voltage Typical: 16.8
Backlight Voltage Maximum: 16.8
Backlight Current Typical (mAh): 96
Maximum Backlight Consumption: 2.1
Typical Backlight Consumption: 1.9
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Typical LCD Power Consumption: 1
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-12
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P1C8B-025A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.06
Dot pitch vertical: 0.17
Glare: Glare
Hardness: Hard coating (3H)
Reflection: Yes
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 600
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25 (Typ.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 135.6
Bezel Height: 139.25
Outline Depth Typical: 2.39
Outline Depth Max: 4.5900
Mounting: Face mounting holes (8 pcs) on left, right, up, down slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (8 pcs) on left, right, up, down slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 160
Typical Weight: 160
Maximum Weight: 160

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
