12.3" Inch TFT-LCD Display

C123HAN01.0
AUO

Home
TFT-LCD
AUO
C123HAN01.0

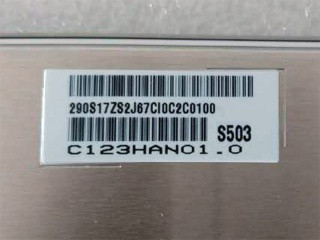

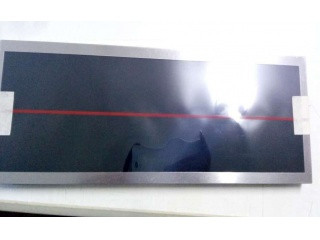

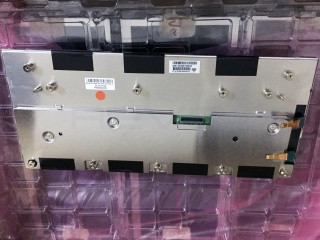

AUO C123HAN01.0 - TFT-LCD 1920 x 720

Product description

C123HAN01.0 is a display manufactured by AUO. It has a resolution of 1920 x 720, brightness of 700 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 110 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 10S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 30
Backlight Voltage Typical: 30
Backlight Voltage Maximum: 30
Backlight Current Minimum (mAh): 80
Backlight Current Typical (mAh): 85
Backlight Current Maximum (mAh): 85
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Blu interface pin pitch mm: 0
Blu interface amount: 1
Blu interface pin amount: 8
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH41-40S-0.5SH(05)
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 720
Dot Pitch: 0.05
Dot pitch vertical: 0.15
Glare: Antiglare
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 700
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Response Time: 12
Response Time: 13
Chromaticity: 0.29
Chromaticity: 0.31
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 12.3
Aspect Ratio: 8 x 3
Shape: Flat Rectangle
Vertical Active Area: 109.62
Bezel Height: 112.12
Outline Vertical: 134.86
Outline Depth Typical: 7.6
Outline Depth Max: 15.6000
Mounting: Rear mounting Pole
Orientation: Vertical
Mounting Holes: Rear mounting Pole

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 590
Typical Weight: 590
Maximum Weight: 590

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 95
