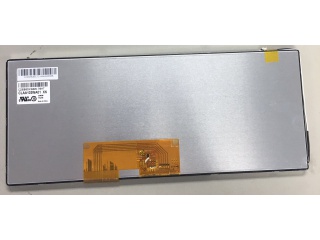

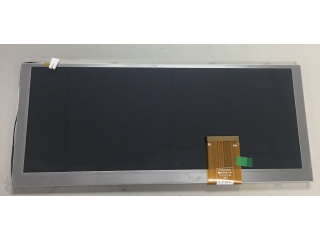

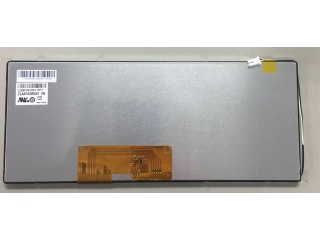

10.3" Inch TFT-LCD Display
CLAA103WA01 XN
CPT

Product description

CLAA103WA01 XN is a display manufactured by CPT. It has a resolution of 1280 x 480, brightness of 800 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 6.15
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 9S3P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 23.81
Backlight Voltage Typical: 26.96
Backlight Voltage Maximum: 30.11
Backlight Current Typical (mAh): 210
Typical Backlight Consumption: 5.66
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 13
LCD Signal VGH: 22
LCD Signal VGL: -6
LCD Signal DVDD: 3.3
Maximum LCD Power Consumption: 0.92
Typical LCD Power Consumption: 0.49
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Glare: 25
Reflection: No
Display Type: FFS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 800
Contrast: 1000
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.3
Chromaticity: 0.31
light uniformity: 1.18/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.3
Aspect Ratio: 8 x 3
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 94.44
Outline Vertical: 109.8
Outline Depth Typical: 7.2
Outline Depth Max: 7.5000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 260
Typical Weight: 260
Maximum Weight: 260

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
