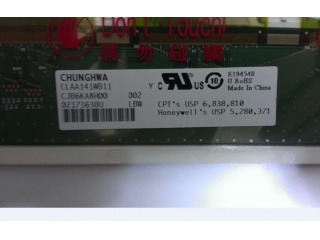

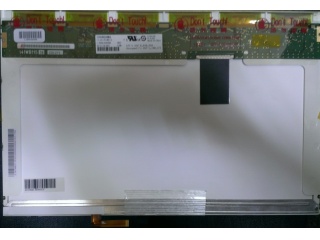

14.1" Inch TFT-LCD Display
CLAA141WB11
CPT

Product description

CLAA141WB11 is a display manufactured by CPT. It has a resolution of 1280 x 800, brightness of 220 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 4.85
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 8S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 22.4
Backlight Voltage Typical: 22.4
Backlight Voltage Maximum: 22.4
Backlight Current Minimum (mAh): 19.5
Backlight Current Typical (mAh): 20
Backlight Current Maximum (mAh): 20.5
Minimum Backlight Consumption: 2.69
Maximum Backlight Consumption: 3.46
Typical Backlight Consumption: 3.07
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Blu interface pin pitch mm: 0
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SL-HF10-R3000
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C6B-030B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 220
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 40
Top Viewing Angle: 40
Right Viewing Angle: 15
Bottom Viewing Angle: 30
Optimal Viewing Direction: 6 o'clock
Response Time: 4
Response Time: 8
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 14.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 189.84
Bezel Height: 193.2
Outline Vertical: 205.5
Outline Depth Max: 5.5000
Mounting: Side mounting holes (8-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 440
Typical Weight: 440
Maximum Weight: 440

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
