7" Inch TFT-LCD Display

DD070NA-02G
Innolux

Home
TFT-LCD
Innolux
DD070NA-02G

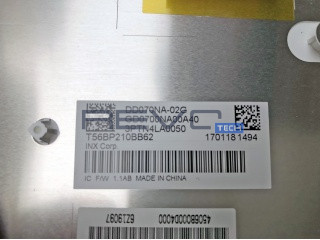

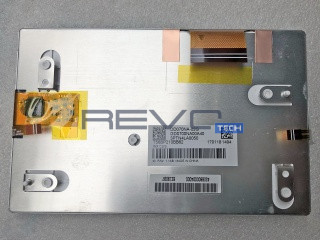

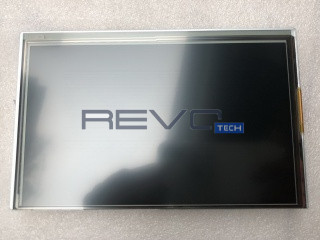

Innolux DD070NA-02G - TFT-LCD 800 x 480

Product description

DD070NA-02G is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 0 cd/m2 and contrast of 1600:1.

Electrical Specs

Vertical frequency hz display output: 60
Backlight Location: Edge light type
Backlight: WLED
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Backlight Interface Model: 10 pcs
Blu interface pin pitch mm: 0
Blu interface amount: 10
Blu interface pin amount: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
LCD Signal AVDD: 10
LCD Signal VGH: 19
LCD Signal VGL: -6.8
Typical LCD Power Consumption: 0.7
Signal Interface: FPC

Optical specs

Panel type: TFT-LCD
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Contrast: 1600
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Response Time: 5
Response Time: 11
Chromaticity: 0.33
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Mounting: Rear mounting Pole (4 pcs)
Orientation: Vertical
Mounting Holes: Rear mounting Pole (4 pcs)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Touchscreen Data: 4-wire Resistive Touch
Resistive Touchscreen Type: 4-Wire

Weights specs

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
