7" Inch TFT-LCD Display

DJ070NA-03J
Innolux

Home
TFT-LCD
Innolux
DJ070NA-03J

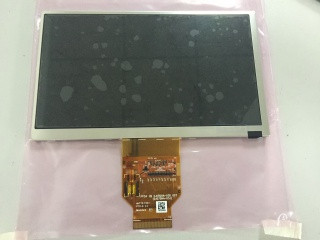

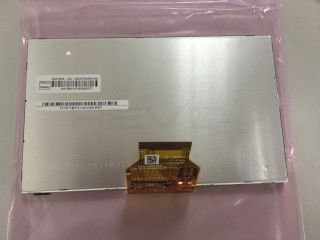

7" Inch TFT-LCD Display

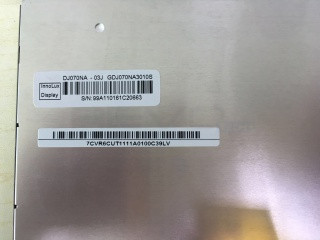

DJ070NA-03J
Innolux

Product description

DJ070NA-03J is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 750 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 1000 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 3.62
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 19.6
Backlight Voltage Typical: 21.7
Backlight Voltage Maximum: 23.8
Backlight Current Typical (mAh): 156
Typical Backlight Consumption: 3.39
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 10.4
LCD Signal VGH: 16
LCD Signal VGL: -7
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 0.23
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 750
Contrast: 500
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 70
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 85.92
Bezel Height: 89.92
Outline Vertical: 100
Outline Depth Typical: 5.7
Outline Depth Max: 6.0000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 130
Typical Weight: 130
Maximum Weight: 130

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
