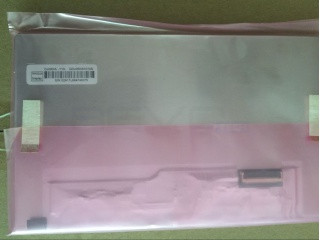

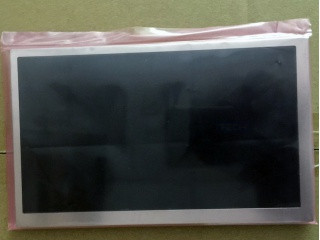

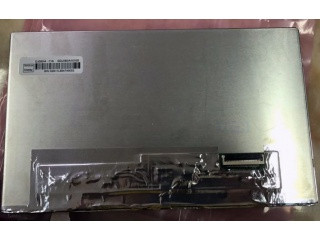

Innolux DJ080IA-11A - TFT-LCD 1280 x 720 HD Ready

Product description

DJ080IA-11A is a display manufactured by Innolux. It has a resolution of 1280 x 720, brightness of 750 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 16.8
Backlight Voltage Typical: 18.6
Backlight Voltage Maximum: 20.4
Backlight Current Typical (mAh): 260
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20647-040E-01
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 720
Dot Pitch: 0.05
Dot pitch vertical: 0.14
Glare: Antiglare
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 750
Contrast: 1000
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 8
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 99.36
Bezel Height: 102.36
Outline Vertical: 116.9
Outline Depth Typical: 6.4
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 205
Typical Weight: 205
Maximum Weight: 205

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
