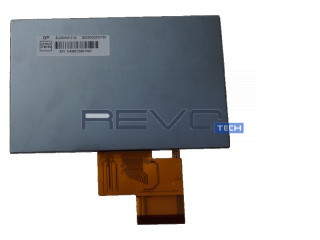

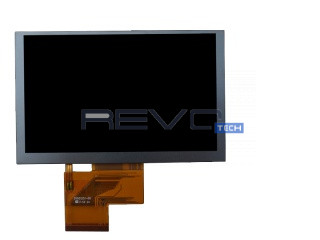

Innolux EJ050NA-01G - TFT-LCD 800 x 480

Product description

EJ050NA-01G is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 350 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 1.5
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 7S2P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 19.6
Backlight Voltage Typical: 21.7
Backlight Voltage Maximum: 23.8
Backlight Current Minimum (mAh): -4
Backlight Current Typical (mAh): 40
Backlight Current Maximum (mAh): 44
Typical Backlight Consumption: 0.87
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
LCD Signal AVDD: 10.4
LCD Signal VGH: 16
LCD Signal VGL: -6
LCD Signal DVDD: 3.3
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: DRGB-50P1C8B-115A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.05
Dot pitch vertical: 0.14
Glare: Clear
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 64.8
Bezel Height: 67.6
Outline Vertical: 76.3
Outline Depth Typical: 3.1
Outline Depth Max: 3.3000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 58.5
Typical Weight: 58.5
Maximum Weight: 58.5

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
