8" Inch TFT-LCD Display

EJ080NA-04C
Innolux

Home
TFT-LCD
Innolux
EJ080NA-04C

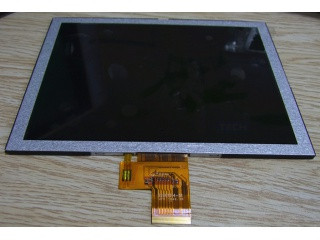

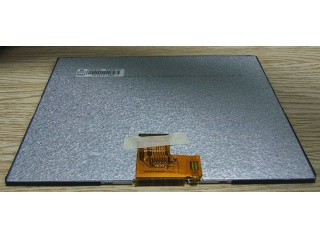

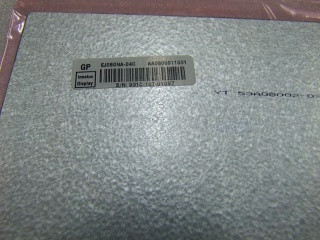

8" Inch TFT-LCD Display
EJ080NA-04C
Innolux

Product description

EJ080NA-04C is a display manufactured by Innolux. It has a resolution of 1024 x 768, brightness of 250 cd/m2 and contrast of 700:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 9.3
Backlight Voltage Maximum: 10.2
Backlight Current Minimum (mAh): -10
Backlight Current Typical (mAh): 180
Backlight Current Maximum (mAh): 190
Typical Backlight Consumption: 1.67
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
LCD Signal AVDD: 11.5
LCD Signal VGH: 22
LCD Signal VGL: -7
Typical LCD Power Consumption: 0.37
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P1C8B-050A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.05
Dot pitch vertical: 0.16
Hardness: Hard coating
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 700
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 75
Top Viewing Angle: 75
Right Viewing Angle: 75
Bottom Viewing Angle: 75
Optimal Viewing Direction: 4:30 o'clock
Response Time: 6
Response Time: 14
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 8
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 121.54
Bezel Height: 124.7
Outline Vertical: 141
Outline Depth Typical: 3.4
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
