8" Inch TFT-LCD Display

EJ080NA-05A
Innolux

Home
TFT-LCD
Innolux
EJ080NA-05A

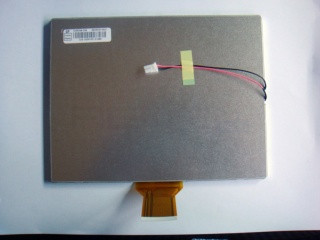

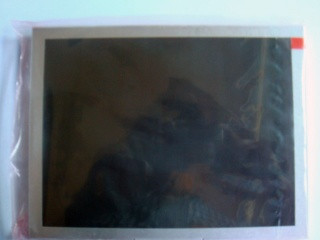

8" Inch TFT-LCD Display

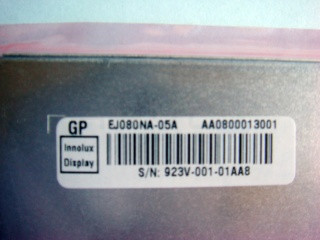

EJ080NA-05A
Innolux

Product description

EJ080NA-05A is a display manufactured by Innolux. It has a resolution of 800 x 600, brightness of 250 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 2.14
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S9P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 9.3
Backlight Voltage Typical: 9.9
Backlight Voltage Maximum: 10.5
Backlight Current Minimum (mAh): -18
Backlight Current Typical (mAh): 180
Backlight Current Maximum (mAh): 198
Typical Backlight Consumption: 1.78
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
LCD Signal AVDD: 10.4
LCD Signal VGH: 16
LCD Signal VGL: -7
Typical LCD Power Consumption: 0.36
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: DRGB-50P1C8B-105A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 500
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Dithering
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 8
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 121.5
Bezel Height: 124.3
Outline Vertical: 141
Outline Depth Typical: 5.6
Outline Depth Max: 5.9000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 243
Typical Weight: 243
Maximum Weight: 243

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
