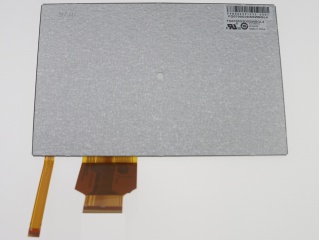

7" Inch TFT-LCD Display

FG0700G3DSSWBGL4
Data Image

Home
TFT-LCD
Data Image
FG0700G3DSSWBGL4

7" Inch TFT-LCD Display
FG0700G3DSSWBGL4
Data Image

Product description

FG0700G3DSSWBGL4 is a display manufactured by Data Image. It has a resolution of 800 x 480, brightness of 900 cd/m2 and contrast of 600:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S10P
Baklight Arrangement: 10 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 8.7
Backlight Voltage Typical: 8.7
Backlight Voltage Maximum: 8.7
Backlight Current Typical (mAh): 25
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Typical LCD Power Consumption: 0.5
Signal Interface: FPC

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 900
Contrast: 600
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 60
Response Time: 5
Response Time: 15
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Outline Vertical: 106.4
Outline Depth Typical: 3.4
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 132
Typical Weight: 132
Maximum Weight: 132

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
