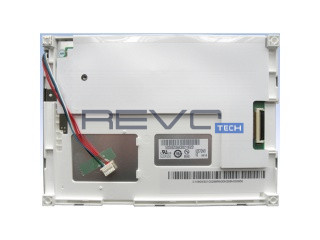

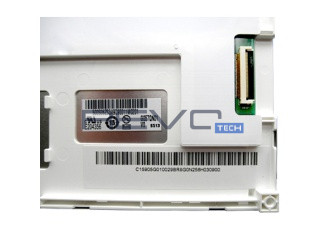

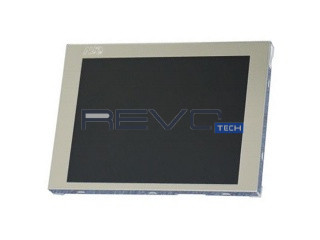

5.7" Inch TFT-LCD Display

G057QN01 V0
AUO

Home
TFT-LCD
AUO
G057QN01 V0

5.7" Inch TFT-LCD Display
G057QN01 V0
AUO

Product description

G057QN01 V0 is a display manufactured by AUO. It has a resolution of 320 x 240, brightness of 400 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 1.57
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 26.8
Backlight Voltage Typical: 26.8
Backlight Voltage Maximum: 26.8
Backlight Current Minimum (mAh): 15
Backlight Current Typical (mAh): 20
Backlight Current Maximum (mAh): 20
Typical Backlight Consumption: 1.2
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.43
Typical LCD Power Consumption: 0.37
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 320 x 240
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 70
Bottom Viewing Angle: 70
Optimal Viewing Direction: 12 o'clock
Response Time: 15
Response Time: 10
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 86.4
Bezel Height: 89.4
Outline Vertical: 104.6
Outline Depth Typical: 12.3
Mounting: Rear mounting holes (4-Φ2.6)
Orientation: Vertical
Mounting Holes: Rear mounting holes (4-Φ2.6)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 162.5
Typical Weight: 162.5
Maximum Weight: 162.5

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
