5.7" Inch TFT-LCD Display

G057VGE-T01
Innolux

Home
TFT-LCD
Innolux
G057VGE-T01

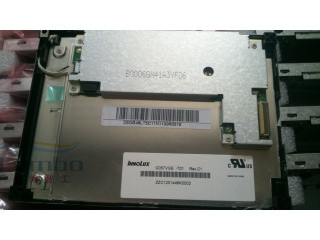

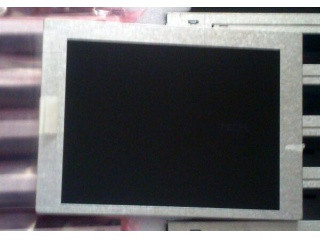

Innolux G057VGE-T01 - TFT-LCD 640 x 480

Product description

G057VGE-T01 is a display manufactured by Innolux. It has a resolution of 640 x 480, brightness of 450 cd/m2 and contrast of 800:1.

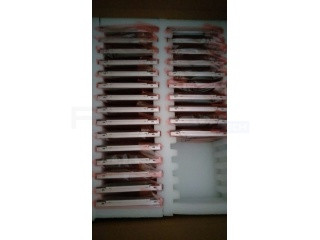

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 2000 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 3.5
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Current Driver Consumption: 0.23
Minimum Current Driver Consumption: 0.29
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SRKS-G-TB(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.53
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH12-33S-0.5SH(55)
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 33
Signal Pins Configuration: DRGB-33P1C6B-020A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Glare: 25
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 450
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 54
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 70
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 15
Response Time: 35
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 86.4
Bezel Height: 89.4
Outline Vertical: 104.6
Outline Depth Typical: 12.3
Outline Depth Max: 12.8000
Mounting: Side mounting holes (4-Φ2.6); Rear mounting holes (4-Φ2.6)
Orientation: Vertical
Mounting Holes: Side mounting holes (4-Φ2.6); Rear mounting holes (4-Φ2.6)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 162.5
Typical Weight: 162.5
Maximum Weight: 162.5

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
