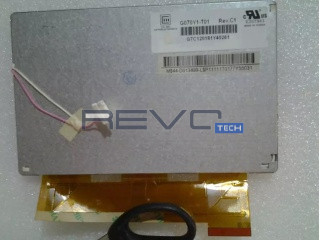

Innolux G070Y1-T01 - TFT-LCD 800 x 480

Product description

G070Y1-T01 is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 450 cd/m2 and contrast of 500:1.

Electrical Specs

Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 35000
Backlight Voltage Minimum: 550
Backlight Voltage Typical: 550
Backlight Voltage Maximum: 550
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 5.5
Backlight Current Maximum (mAh): 8
Typical Backlight Consumption: 3.46
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
LCD Signal AVDD: 11.6
LCD Signal VGH: 18
LCD Signal VGL: -7
Signal Interface: FPC

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 450
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Response Time: 5
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 94.04
Outline Vertical: 104
Outline Depth Typical: 5.5
Outline Depth Max: 5.8000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 170
Typical Weight: 170
Maximum Weight: 170

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
