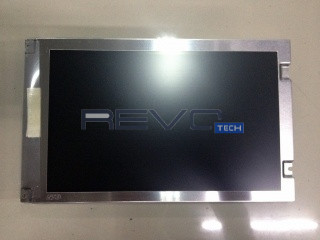

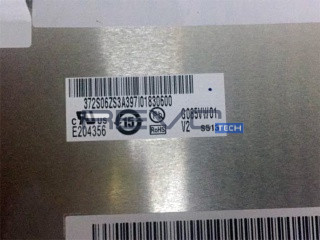

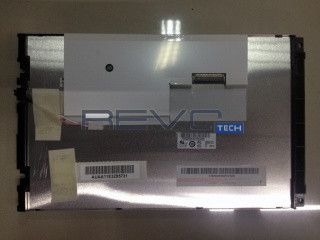

8.5" Inch TFT-LCD Display

G085VW01 V2
AUO

Home
TFT-LCD
AUO
G085VW01 V2

8.5" Inch TFT-LCD Display
G085VW01 V2
AUO

Product description

G085VW01 V2 is a display manufactured by AUO. It has a resolution of 800 x 480, brightness of 200 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 1025 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 6.44
Backlight Location: Edge
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: U shape
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 990
Backlight Voltage Typical: 990
Backlight Voltage Maximum: 990
Backlight Current Minimum (mAh): 5.5
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 9
Backlight Operation Frequency: 45
Typical Backlight Consumption: 5.94
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.5
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 60
Response Time: 20
Response Time: 10
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.33/1.43 (Typ./Max.)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8.5
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 110.88
Bezel Height: 116
Outline Vertical: 135.4
Outline Depth Max: 12.5000
Mounting: Face mounting holes (4 pcs) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 285
Typical Weight: 285
Maximum Weight: 285

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
