10.4" Inch TFT-LCD Display

G104ACJ-L01
Innolux

Home
TFT-LCD
Innolux
G104ACJ-L01

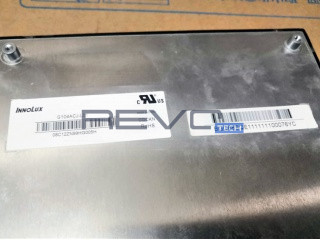

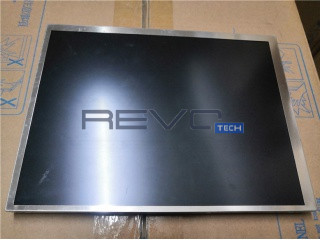

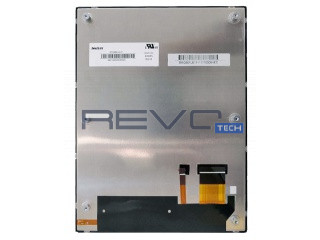

Innolux G104ACJ-L01 - TFT-LCD 960 x 1280

Product description

G104ACJ-L01 is a display manufactured by Innolux. It has a resolution of 960 x 1280, brightness of 900 cd/m2 and contrast of 1000:1.

Electrical Specs

Vertical frequency hz display output: 60
Total Power Consumption (Watts): 9.64
Backlight Location: Edge light type
Backlight: WLED
Backlight Lamp Quantity: 1 pcs
Backlight Voltage Minimum: 29.2
Backlight Voltage Typical: 29.2
Backlight Voltage Maximum: 29.2
Backlight Current Typical (mAh): 0.1
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: HRS
Backlight Interface Model: FH52-10S-0.5SH
Blu interface pin pitch mm: 0
Blu interface amount: 1
Blu interface pin amount: 10
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.58
Typical LCD Power Consumption: 1.32
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH52-50S-0.5SH
Signal Interface Connectors: 1

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 960 x 1280
Dot Pitch: 0.06
Dot pitch vertical: 0.17
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 900
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 12
Chromaticity: 0.33
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 3 x 4
Shape: Flat Rectangle
Vertical Active Area: 211.2
Bezel Height: 213.9
Outline Vertical: 228.7
Outline Depth Typical: 8
Outline Depth Max: 14.2700
Mounting: Rear mounting Pole (6-M2.5)
Orientation: Horizontal
Mounting Holes: Rear mounting Pole (6-M2.5)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 460
Typical Weight: 460
Maximum Weight: 460

Temperature Specs

Minimum Operating Temperature: -40
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
