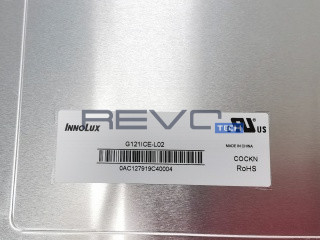

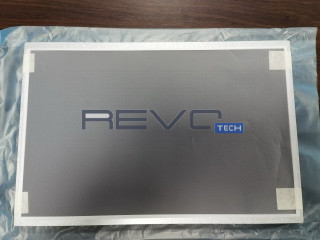

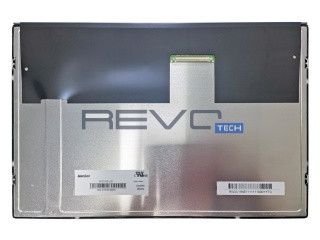

Innolux G121ICE-L02 - TFT-LCD 1280 x 800

Product description

G121ICE-L02 is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 400 cd/m2 and contrast of 1000:1.

Electrical Specs

Vertical frequency hz display output: 60
Backlight Location: Edge light type
Backlight: WLED
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Current Driver Consumption: 0.55
Minimum Current Driver Consumption: 0.7
Minimum Backlight Consumption: 6.6
Maximum Backlight Consumption (Watts): 8.4
Backlight Connection: Included in signal interface
Signal type: Logic Voltage
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: Pins
Signal Interface Model: 187114-30091
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1000
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 12
Response Time: 8
Chromaticity: 0.33
light uniformity: 1.25/1.43 (Typ./Max.)
(5 points)

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 163.2
Bezel Height: 166.2
Outline Vertical: 184
Outline Depth Typical: 7.1
Outline Depth Max: 10.5000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 480
Typical Weight: 480
Maximum Weight: 480

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
