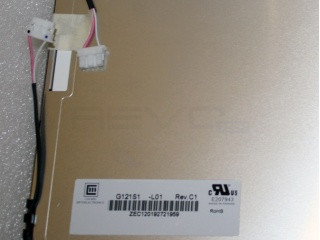

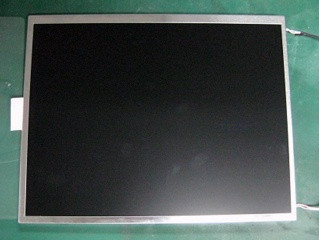

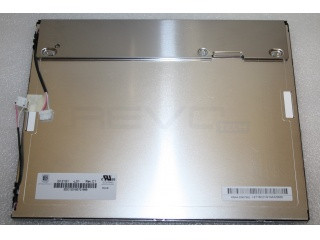

12.1" Inch TFT-LCD Display
G121S1-L01
Innolux

Product description

G121S1-L01 is a display manufactured by Innolux. It has a resolution of 800 x 600, brightness of 450 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 200 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 450
Backlight Voltage Typical: 500
Backlight Voltage Maximum: 550
Backlight Current Typical (mAh): 8
Typical Backlight Consumption: 8
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 2
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SEB20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C6B-070D

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.1
Dot pitch vertical: 0.31
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1000
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 12
Chromaticity: 0.33
Chromaticity: 0.34
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 184.5
Bezel Height: 187.5
Outline Vertical: 204
Outline Depth Typical: 12.2
Outline Depth Max: 12.7000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 660
Typical Weight: 660
Maximum Weight: 660

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 70
Storage Temperature Minumum: -40
Storage Temperature Maximum: 80
