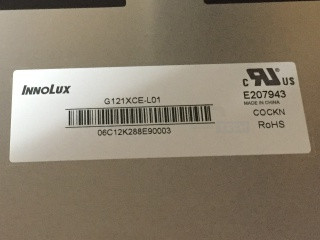

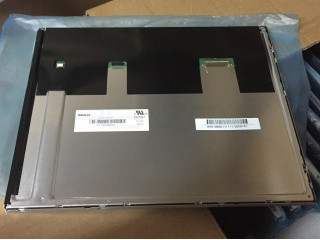

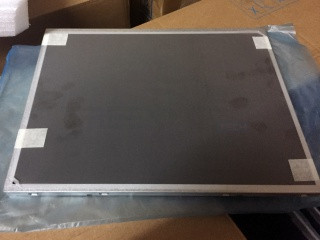

Innolux G121XCE-L01 - TFT-LCD 1024 x 768

Product description

G121XCE-L01 is a display manufactured by Innolux. It has a resolution of 1024 x 768, brightness of 600 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 12.02
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Backlight Consumption: 10.8
Maximum Backlight Consumption (Watts): 12.8
Backlight Connection: via Connector
Backlight Interface Manufacturer: ACES
Backlight Interface Model: 91208-01001
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.49
Typical LCD Power Consumption: 1.22
Signal Interface: Connector
Signal Interface Manufacturer: STARCONN
Signal Interface Model: 076B20-0048RA-G4
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 600
Contrast: 1000
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 12
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 184.32
Bezel Height: 187.5
Outline Vertical: 204
Outline Depth Typical: 8.4
Outline Depth Max: 8.9000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 500
Typical Weight: 500
Maximum Weight: 500

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
