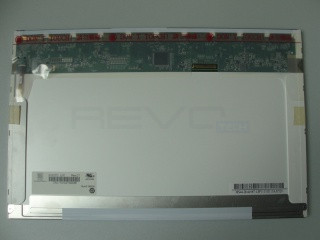

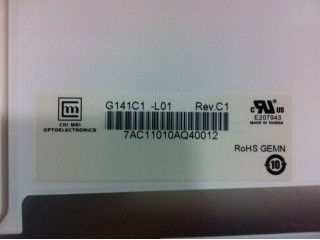

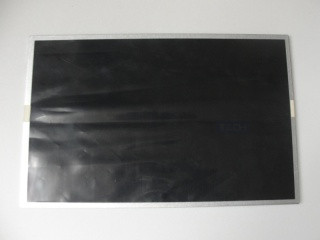

Innolux G141C1-L01 - TFT-LCD 1440 x 900

Product description

G141C1-L01 is a display manufactured by Innolux. It has a resolution of 1440 x 900, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 1.82
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-12
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P2C6B-035A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Glare
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.40 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: U/D

Mechanical specs

Display Type: LCM
Size: 14.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 189.68
Bezel Height: 193
Outline Vertical: 205.5
Outline Depth Typical: 5.2
Outline Depth Max: 5.5000
Mounting: Side mounting holes (8-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 413
Typical Weight: 413
Maximum Weight: 413

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
