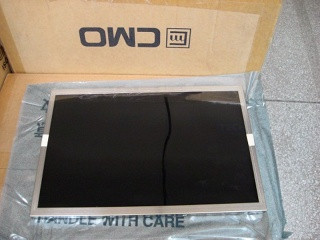

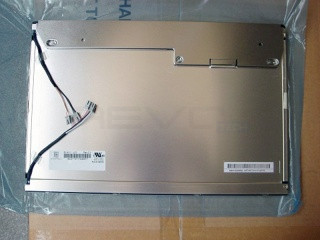

14.1" Inch TFT-LCD Display

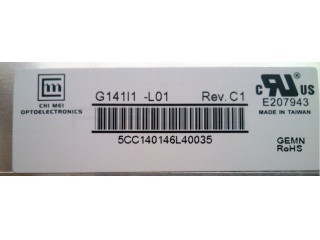

G141I1-L01
Innolux

Product description

G141I1-L01 is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 700 cd/m2 and contrast of 700:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 513
Backlight Voltage Typical: 570
Backlight Voltage Maximum: 627
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 50
Typical Backlight Consumption: 15.96
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 35001HS-02L
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C6B-010C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Glare
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 700
Contrast: 700
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 5
Response Time: 11
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 14.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 189.6
Bezel Height: 192.6
Outline Vertical: 216.5
Outline Depth Typical: 16
Outline Depth Max: 16.5000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1200
Typical Weight: 1200
Maximum Weight: 1200

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
