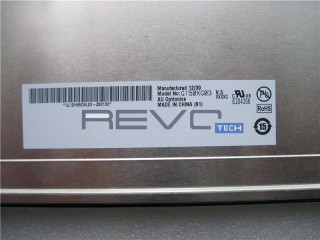

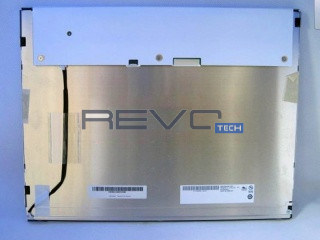

AUO G150XG03 V5 - TFT-LCD 1024 x 768

Product description

G150XG03 V5 is a display manufactured by AUO. It has a resolution of 1024 x 768, brightness of 250 cd/m2 and contrast of 700:1.

Electrical Specs

Total Power Consumption (Watts): 5.68
Backlight Location: Edge (Bottom side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Backlight Consumption: 3.6
Maximum Backlight Consumption (Watts): 3.78
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 3808K-F05N-02R
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 5
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Maximum LCD Power Consumption: 2.27
Typical LCD Power Consumption: 2.08
Signal Interface: Connector
Signal Interface Manufacturer: STM
Signal Interface Model: MSB240420E
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-080A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.15
Dot pitch vertical: 0.15
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 700
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + FRC
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 60
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 5.7
Response Time: 2.3
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Bezel Height: 234.4
Outline Vertical: 253.5
Outline Depth Max: 13.1000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 950
Typical Weight: 950
Maximum Weight: 950

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
