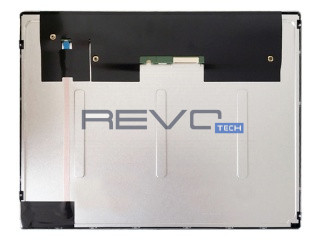

Innolux G150XNE-L02 - TFT-LCD 1024 x 768

Product description

G150XNE-L02 is a display manufactured by Innolux. It has a resolution of 1024 x 768, brightness of 350 cd/m2 and contrast of 2500:1.

Electrical Specs

Vertical frequency hz display output: 60
Backlight Location: Edge light type
Backlight: WLED
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Current Driver Consumption: -0.5
Minimum Current Driver Consumption: 1.5
Minimum Backlight Consumption: 6
Maximum Backlight Consumption (Watts): 6.1
Backlight Connection: via Connector
Blu interface pin pitch mm: 0
Blu interface amount: 5
Blu interface pin amount: 1
Signal type: Logic Voltage
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: Pins
Signal Interface Model: CID520D1HR0-NH
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 20

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 2500
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + FRC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 5
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Bezel Height: 231.3
Outline Vertical: 253.5
Outline Depth Typical: 9.1
Outline Depth Max: 9.6000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 985
Typical Weight: 985
Maximum Weight: 985

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 70
Storage Temperature Minumum: -40
Storage Temperature Maximum: 70
