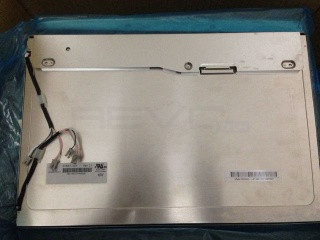

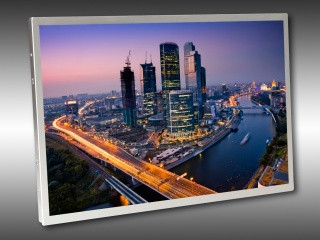

15.4" Inch TFT-LCD Display

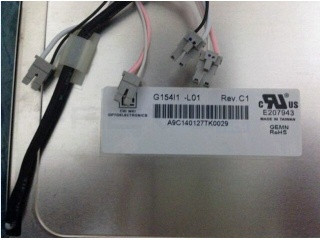

G154I1-L01
Innolux

Product description

G154I1-L01 is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 700 cd/m2 and contrast of 700:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 540
Backlight Voltage Typical: 600
Backlight Voltage Maximum: 660
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 55
Typical Backlight Consumption: 16.8
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Glare
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 700
Contrast: 700
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 5
Response Time: 11
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 15.4
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 207
Bezel Height: 210.3
Outline Vertical: 230
Outline Depth Typical: 15.8
Outline Depth Max: 16.3000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1320
Typical Weight: 1320
Maximum Weight: 1320

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
