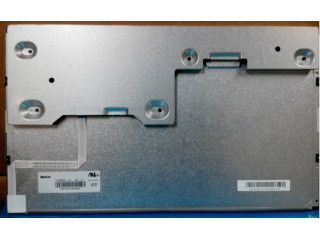

15.6" Inch TFT-LCD Display

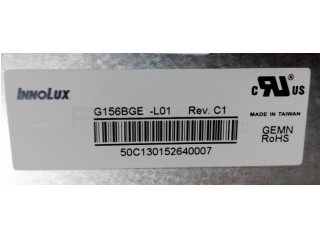

G156BGE-L01
Innolux

Product description

G156BGE-L01 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 300 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 10.95
Backlight Location: Edge (Bottom side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Current Driver Consumption: 0.6
Minimum Current Driver Consumption: 1
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI4205M2HRP-NH
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 5
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 1.6
Typical LCD Power Consumption: 1.35
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 187114-30091
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-180A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 65
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.54 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.54
Bezel Height: 196.84
Outline Vertical: 215.92
Outline Depth Typical: 16.85
Outline Depth Max: 17.3500
Mounting: Side mounting holes; Rear mounting holes
Orientation: Vertical
Mounting Holes: Side mounting holes; Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1220
Typical Weight: 1220
Maximum Weight: 1220

Temperature Specs

Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
