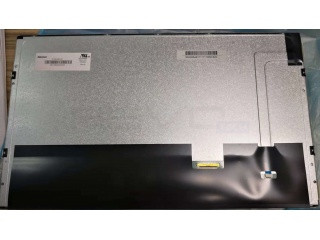

15.6" Inch TFT-LCD Display

G156HCE-L01
Innolux

Home
TFT-LCD
Innolux
G156HCE-L01

15.6" Inch TFT-LCD Display
G156HCE-L01
Innolux

Product description

G156HCE-L01 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 450 cd/m2 and contrast of 800:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 180 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 16
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Current Driver Consumption: 0.8
Minimum Current Driver Consumption: 1.2
Backlight Connection: via Connector
Backlight Interface Manufacturer: CviLux
Backlight Interface Model: CI4205M2HRP-NH
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 5
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 5
Typical LCD Power Consumption: 4
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-76
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 800
Colors: 16200000
Gray Scale: 6-bit + FRC
Gamut Percentage: 73
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 12
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.59
Bezel Height: 196.49
Outline Vertical: 215.98
Outline Depth Typical: 9.3
Outline Depth Max: 9.6000
Mounting: Side mounting holes (4 pcs) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1070
Typical Weight: 1070
Maximum Weight: 1070

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 90
