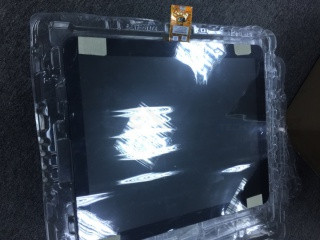

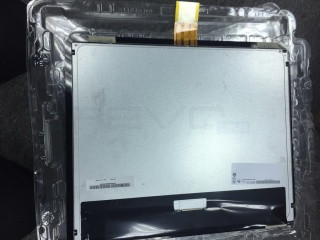

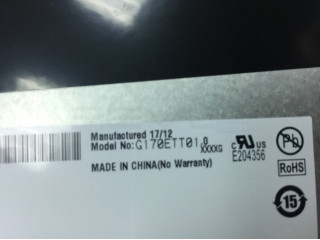

AUO G170ETT01.0 - TFT-LCD 1280 x 1024

Product description

G170ETT01.0 is a display manufactured by AUO. It has a resolution of 1280 x 1024, brightness of 250 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 21 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 9.91
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 25.2
Backlight Voltage Typical: 28.8
Backlight Voltage Maximum: 32.4
Backlight Current Minimum (mAh): 60
Backlight Current Typical (mAh): 66
Backlight Current Maximum (mAh): 66
Maximum Backlight Consumption: 7.77
Typical Backlight Consumption: 6.91
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 3707K-S06N-21R
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 3.6
Typical LCD Power Consumption: 3
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: AL230F-A0G1D-P
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Hardness: Hard coating (7H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 270.34
Outline Vertical: 316.74
Outline Depth Typical: 10.85
Outline Depth Max: 14.0500
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Touchscreen Attachment Type: Optically Bonded
Touchscreen Signal Type: USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
