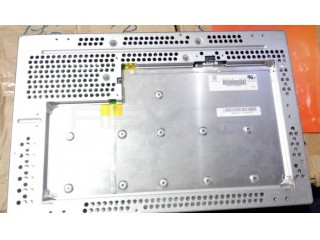

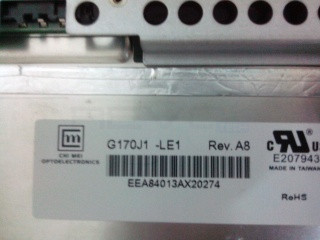

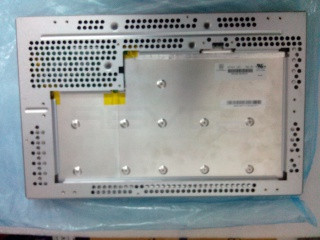

Innolux G170J1-LE1 - TFT-LCD 1920 x 1200

Product description

G170J1-LE1 is a display manufactured by Innolux. It has a resolution of 1920 x 1200, brightness of 600 cd/m2 and contrast of 2000:1.

Electrical Specs

Total Power Consumption (Watts): 25.45
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Minimum Current Driver Consumption: 1.58
Minimum Current Driver Consumption: 1.78
Backlight Connection: via Connector
Backlight Interface Manufacturer: molex
Backlight Interface Model: 43650-1013
Blu interface pin pitch mm: 3
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Typical LCD Power Consumption: 5.25
Signal Interface: Connector
Signal Interface Manufacturer: molex
Signal Interface Model: 501864-3091
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-180D

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Glare
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 600
Contrast: 2000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 20
Response Time: 9
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.20/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 228.6
Bezel Height: 231.8
Outline Vertical: 250.8
Outline Depth Typical: 18.6
Outline Depth Max: 19.0000
Mounting: Side mounting holes (4-M4) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M4) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1715
Typical Weight: 1715
Maximum Weight: 1715

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 80
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
