17.3" Inch TFT-LCD Display

G173HW01 V0
AUO

Home
TFT-LCD
AUO
G173HW01 V0

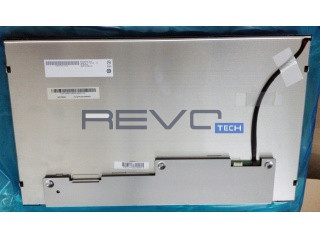

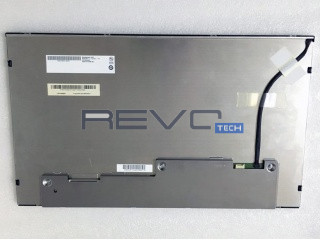

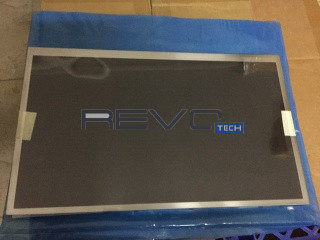

AUO G173HW01 V0 - TFT-LCD 1920 x 1080 Full HD

Product description

G173HW01 V0 is a display manufactured by AUO. It has a resolution of 1920 x 1080, brightness of 400 cd/m2 and contrast of 600:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 100 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 17
Backlight Location: Edge (Top side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Backlight Consumption: 12
Maximum Backlight Consumption (Watts): 15
Backlight Connection: via Connector
Backlight Interface Manufacturer: HRS
Backlight Interface Model: DF14A-6P-1.25H
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 6
Typical LCD Power Consumption: 5
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: MDF76TW-30S-1H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-200A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 600
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 60
Bottom Viewing Angle: 80
Response Time: 37
Response Time: 3
Chromaticity: 0.3
Chromaticity: 0.31
light uniformity: 1.25/1.33 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17.3
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 214.81
Bezel Height: 218.01
Outline Vertical: 240
Outline Depth Typical: 12.5
Outline Depth Max: 13.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1080
Typical Weight: 1080
Maximum Weight: 1080

Temperature Specs

Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 75
