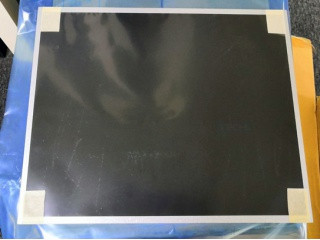

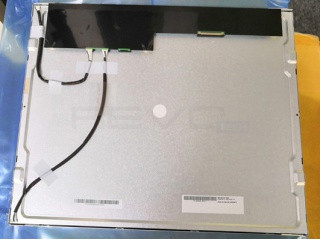

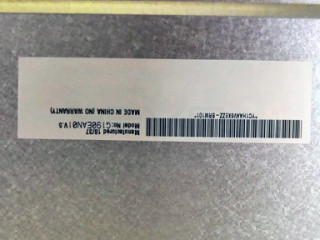

AUO G190EAN01.5 - TFT-LCD 1280 x 1024

Product description

G190EAN01.5 is a display manufactured by AUO. It has a resolution of 1280 x 1024, brightness of 700 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge (Bottom side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.8
Maximum Voltage Driver Consumption: 13.2
Minimum Backlight Consumption: 23
Maximum Backlight Consumption (Watts): 25.2
Backlight Connection: via Connector
Backlight Interface Manufacturer: STM
Backlight Interface Model: MS24019R
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 9
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4.5
Typical LCD Power Consumption: 3.5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SSLA-HF15
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-190A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.098
Dot pitch vertical: 0.294
Glare: Antiglare
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 700
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 13
Response Time: 12
Chromaticity: 0.265
Chromaticity: 0.305
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.056
Bezel Height: 305.06
Outline Vertical: 324
Outline Depth Typical: 15.3
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1700
Typical Weight: 1700
Maximum Weight: 1700

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
