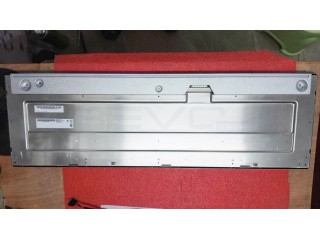

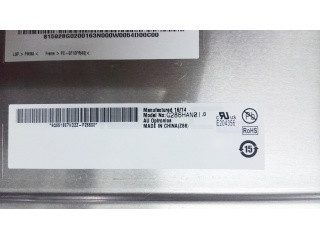

AUO G286HAN01.0 - TFT-LCD 1920 x 540

Product description

G286HAN01.0 is a display manufactured by AUO. It has a resolution of 1920 x 540, brightness of 1000 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 44.96
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 38.4
Backlight Voltage Typical: 38.4
Backlight Voltage Maximum: 38.4
Backlight Current Typical (mAh): 120
Maximum Backlight Consumption: 41.46
Typical Backlight Consumption: 36.86
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 3707K-S06N-01L
Blu interface pin pitch mm: 1
Blu interface amount: 2
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 3.5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RTE51SZ-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 540
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 16
Response Time: 9
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 28.6
Aspect Ratio: 3 x 1
Shape: Flat Rectangle
Vertical Active Area: 196.43
Bezel Height: 200.43
Outline Vertical: 229.49
Outline Depth Typical: 15.14
Outline Depth Max: 21.3400
Mounting: Side mounting holes (18-M3) on left, right, up, down bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (18-M3) on left, right, up, down bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2700
Typical Weight: 2700
Maximum Weight: 2700

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
