7" Inch TFT-LCD Display

HJ070IA-02F
Innolux

Home
TFT-LCD
Innolux
HJ070IA-02F

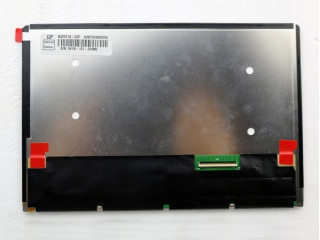

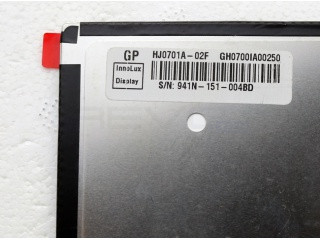

7" Inch TFT-LCD Display
HJ070IA-02F
Innolux

Product description

HJ070IA-02F is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 350 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 2.09
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 12.8
Backlight Voltage Typical: 12.8
Backlight Voltage Maximum: 12.8
Backlight Current Minimum (mAh): -4
Backlight Current Typical (mAh): 100
Backlight Current Maximum (mAh): 104
Typical Backlight Consumption: 1.28
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
LCD Signal AVDD: 9.74
LCD Signal VGH: 22.7
LCD Signal VGL: -8
LCD Signal VDD: 3.3
Typical LCD Power Consumption: 0.81
Signal Interface: Connector
Signal Interface Manufacturer: Vigorconn
Signal Interface Model: F62240-H1210A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P1C8B-050D

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.04
Dot pitch vertical: 0.12
Hardness: Hard coating
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 800
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 20
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 93.6
Bezel Height: 95.6
Outline Vertical: 107.2
Outline Depth Typical: 2.5
Outline Depth Max: 4.5000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 102
Typical Weight: 102
Maximum Weight: 102

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
