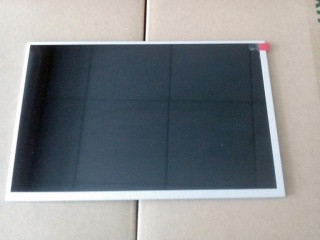

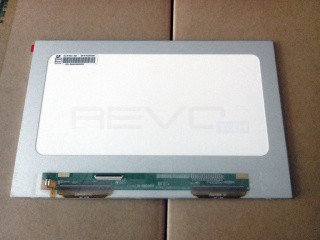

10.1" Inch TFT-LCD Display
HJ101NA-02C
Innolux

Product description

HJ101NA-02C is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 250 cd/m2 and contrast of 700:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 9.3
Backlight Voltage Typical: 9.3
Backlight Voltage Maximum: 9.3
Backlight Current Minimum (mAh): 240
Backlight Current Typical (mAh): 260
Backlight Current Maximum (mAh): 260
Typical Backlight Consumption: 2.3
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 11
LCD Signal VGH: 20
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 0.92
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.06
Dot pitch vertical: 0.17
Glare: Glare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 700
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Left Viewing Angle: 75
Top Viewing Angle: 75
Right Viewing Angle: 75
Bottom Viewing Angle: 75
Optimal Viewing Direction: 12 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 135.6
Bezel Height: 139
Outline Vertical: 149.1
Outline Depth Typical: 3.4
Outline Depth Max: 5.5000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 206
Typical Weight: 206
Maximum Weight: 206

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 60
Storage Temperature Minumum: -30
Storage Temperature Maximum: 70
