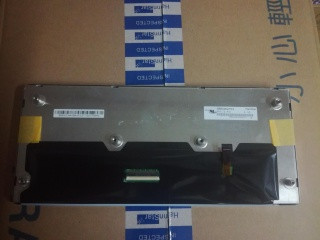

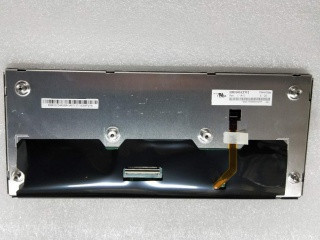

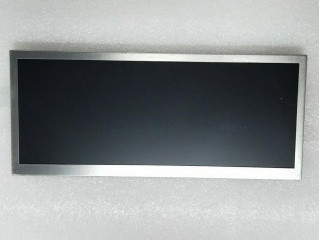

10.3" Inch TFT-LCD Display
HSD103KPW2-A10
HannStar

Product description

HSD103KPW2-A10 is a display manufactured by HannStar. It has a resolution of 1920 x 720, brightness of 850 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 9S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 27.9
Backlight Voltage Typical: 27.9
Backlight Voltage Maximum: 27.9
Backlight Current Typical (mAh): 60
Maximum Backlight Consumption: 7.13
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: IRISO
Backlight Interface Model: IMSA-12001S-10Y901
Blu interface pin pitch mm: 0.5
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 2
Signal Interface: Connector
Signal Interface Manufacturer: IRISO
Signal Interface Model: IMSA-12001S-50Y903
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 720
Dot Pitch: 0.04
Dot pitch vertical: 0.13
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 850
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.3
Aspect Ratio: 8 x 3
Shape: Flat Rectangle
Vertical Active Area: 91.37
Bezel Height: 93.77
Outline Vertical: 112
Outline Depth Typical: 8.5
Outline Depth Max: 15.7000
Mounting: Rear mounting Pole (6-M3)
Orientation: Vertical
Mounting Holes: Rear mounting Pole (6-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 360
Typical Weight: 360
Maximum Weight: 360

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
