10.4" Inch TFT-LCD Display

HSD104IXN1-A00
HannStar

Home
TFT-LCD
HannStar
HSD104IXN1-A00

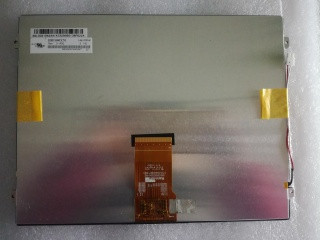

10.4" Inch TFT-LCD Display
HSD104IXN1-A00
HannStar

Product description

HSD104IXN1-A00 is a display manufactured by HannStar. It has a resolution of 1024 x 768, brightness of 600 cd/m2 and contrast of 900:1.

Electrical Specs

Total Power Consumption (Watts): 8.34
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 4S8P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 12.9
Backlight Voltage Typical: 12.9
Backlight Voltage Maximum: 12.9
Backlight Current Typical (mAh): 480
Maximum Backlight Consumption: 6.53
Backlight Driver Board: None
Backlight Connection: via Connector
Blu interface pin pitch mm: 0
Blu interface amount: 2
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
LCD Signal AVDD: 12.1
LCD Signal VGH: 23
LCD Signal VGL: 10
LCD Signal DVDD: 3.3
Typical LCD Power Consumption: 2
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 600
Contrast: 900
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Dithering
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 160.4
Outline Vertical: 174.3
Outline Depth Typical: 5.72
Outline Depth Max: 7.0000
Mounting: Face mounting holes (4-Φ2.5) on left, right slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Φ2.5) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 316
Typical Weight: 316
Maximum Weight: 316

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
