12.1" Inch TFT-LCD Display

HSD121KXN1-A10
HannStar

Home
TFT-LCD
HannStar
HSD121KXN1-A10

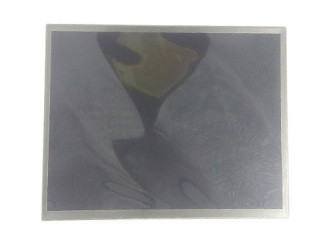

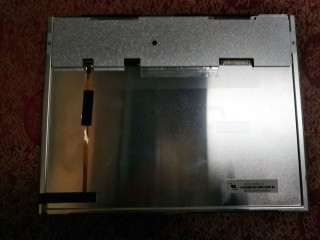

12.1" Inch TFT-LCD Display

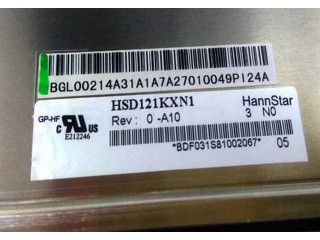

HSD121KXN1-A10
HannStar

Product description

HSD121KXN1-A10 is a display manufactured by HannStar. It has a resolution of 1024 x 768, brightness of 600 cd/m2 and contrast of 900:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 200 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Driver Board: With LED Driver
Backlight Connection: via Connector
Backlight Interface Manufacturer: ACES
Backlight Interface Model: 91208-01001-H01
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Typical LCD Power Consumption: 0.8
Signal Interface: Connector
Signal Interface Manufacturer: STARCONN
Signal Interface Model: 076B20-0048RA-G4
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 600
Contrast: 900
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.29
Chromaticity: 0.33
light uniformity: 1.25/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 184.32
Bezel Height: 187.5
Outline Vertical: 204
Outline Depth Max: 8.9000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 510
Typical Weight: 510
Maximum Weight: 510

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
