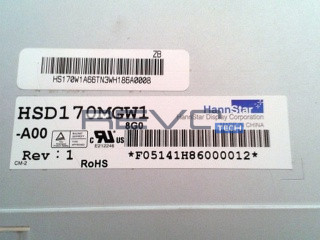

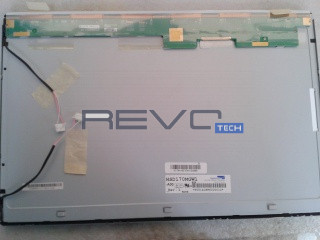

HannStar HSD170MGW1-A00 - TFT-LCD 1440 x 900

Product description

HSD170MGW1-A00 is a display manufactured by HannStar. It has a resolution of 1440 x 900, brightness of 250 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 12.2
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 610
Backlight Voltage Typical: 610
Backlight Voltage Maximum: 610
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 8
Backlight Current Maximum (mAh): 9
Typical Backlight Consumption: 9.8
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 5
Typical LCD Power Consumption: 2.4
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: MDF76KBW-30S-1H(58)
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C6B-020A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 65
Bottom Viewing Angle: 65
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 229.5
Bezel Height: 232.8
Outline Vertical: 254.5
Outline Depth Typical: 11.5
Outline Depth Max: 11.8000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1435
Typical Weight: 1435
Maximum Weight: 1435

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
