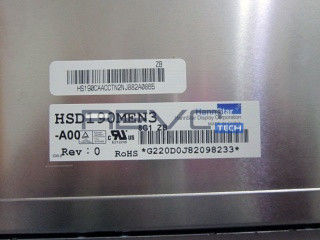

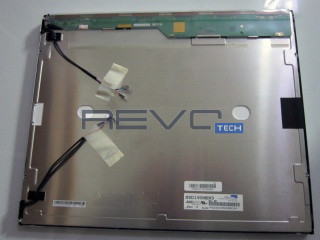

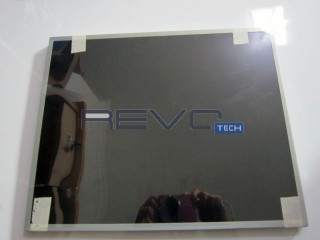

HannStar HSD190MEN3-A00 - TFT-LCD 1280 x 1024

Product description

HSD190MEN3-A00 is a display manufactured by HannStar. It has a resolution of 1280 x 1024, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 23.3
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 594
Backlight Voltage Typical: 660
Backlight Voltage Maximum: 726
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7.5
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 50
Typical Backlight Consumption: 19.8
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 35001HS-02L
Blu interface pin pitch mm: 3.5
Blu interface amount: 4
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Typical LCD Power Consumption: 3.5
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: MDF76URW-30S-1H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-190A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 73
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 1.2
Response Time: 3.8
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305
Outline Vertical: 324
Outline Depth Typical: 15.5
Outline Depth Max: 16.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1950
Typical Weight: 1950
Maximum Weight: 1950

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
