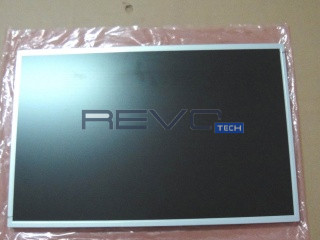

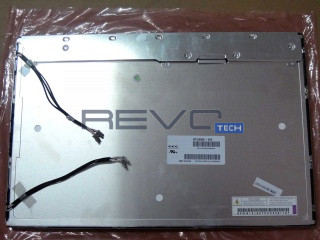

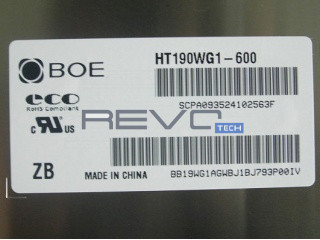

BOE HT190WG1-600 - TFT-LCD 1440 x 900

Product description

HT190WG1-600 is a display manufactured by BOE. It has a resolution of 1440 x 900, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 23.24
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 740
Backlight Voltage Typical: 740
Backlight Voltage Maximum: 740
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 6.5
Backlight Current Maximum (mAh): 8
Typical Backlight Consumption: 19.24
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 35001HS-02L
Blu interface pin pitch mm: 3.5
Blu interface amount: 4
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Typical LCD Power Consumption: 4
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SSL-HF15
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 1.5
Response Time: 3.5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 255.15
Bezel Height: 259.15
Outline Vertical: 278
Outline Depth Max: 19.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2550
Typical Weight: 2550
Maximum Weight: 2550

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
