5.6" Inch TFT-LCD Display
HV056WX1-100
HYDIS

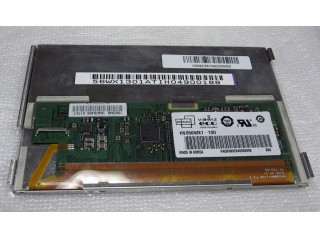

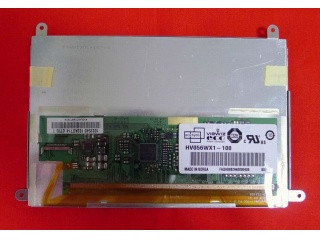

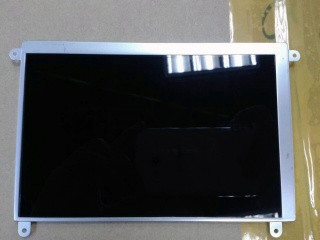

HYDIS HV056WX1-100 - TFT-LCD 1280 x 800

HYDIS

Product description

HV056WX1-100 is a display manufactured by HYDIS. It has a resolution of 1280 x 800, brightness of 300 cd/m2 and contrast of 500:1.

Electrical Specs

  • Edge (Bottom side)
  • WLED
  • 8S2P
  • 2 rows
  • 12000
  • 26.4
  • 26.4
  • 26.4
  • 15
  • With LED Driver
  • 0.84
  • 1.11
  • Embedded into Signal
  • LVDS
  • 1
  • 6-bit
  • 3.3
  • Connector
  • I-PEX
  • 20347-025E-02
  • 0.4
  • 1
  • 25
  • LVDS-25P1C6B-040A

Optical specs

  • TFT-LCD
  • a-Si
  • 1280 x 800
  • 0.03
  • 0.09
  • No
  • FFS
  • Black
  • Transmissive
  • 300
  • 500
  • 262000
  • 6-bit
  • 85
  • 85
  • 85
  • 85
  • Symmetrical
  • 0.32
  • 0.36
  • 1.33 (Max.)
    (9 points)
  • No
  • No

Mechanical specs

  • LCM
  • 5.6
  • 16 x 10
  • Flat Rectangle
  • 75.6
  • 78.6
  • 87.7
  • 2.95
  • 5.0000
  • Face mounting holes (4 pcs) on left, right, up slugs
  • Vertical
  • Face mounting holes (4 pcs) on left, right, up slugs

Sensory specs

  • NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
  • NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

  • 63
  • 63
  • 63

Temperature Specs

  • 60
  • -20
  • 70
