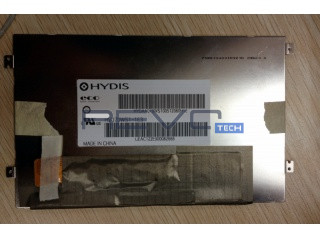

HYDIS HV070WS1-1E3 - TFT-LCD 1024 x 600

Product description

HV070WS1-1E3 is a display manufactured by HYDIS. It has a resolution of 1024 x 600, brightness of 400 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 2.07
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 5S4P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 16
Backlight Voltage Typical: 16
Backlight Voltage Maximum: 16
Backlight Current Minimum (mAh): 80
Backlight Current Typical (mAh): 100
Backlight Current Maximum (mAh): 100
Maximum Backlight Consumption: 1.36
Typical Backlight Consumption: 1.28
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS + SPI
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.96
Typical LCD Power Consumption: 0.79

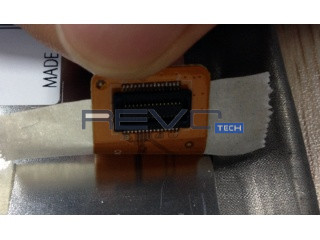

Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF23C-30DS-0.5V
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 600
Dot Pitch: 0.05
Dot pitch vertical: 0.15
Reflection: No
Display Type: FFS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 53
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.3
Chromaticity: 0.33
light uniformity: 1.25/1.39 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 17 x 10
Shape: Flat Rectangle
Vertical Active Area: 90
Outline Vertical: 102.9
Outline Depth Typical: 2.47
Outline Depth Max: 2.6700
Mounting: Face mounting holes (4-Φ1.8) on left, right slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (4-Φ1.8) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 95
Typical Weight: 95
Maximum Weight: 95

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 60
Storage Temperature Minumum: -40
Storage Temperature Maximum: 70
