13.3" Inch TFT-LCD Display

HV133WX1-100
HYDIS

Home
TFT-LCD
HYDIS
HV133WX1-100

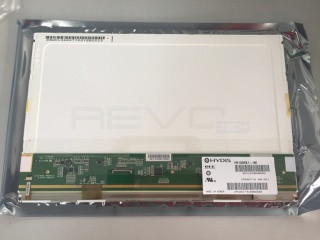

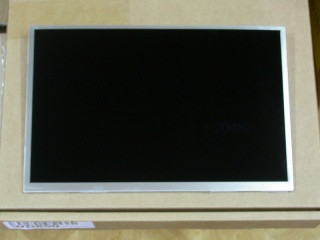

13.3" Inch TFT-LCD Display

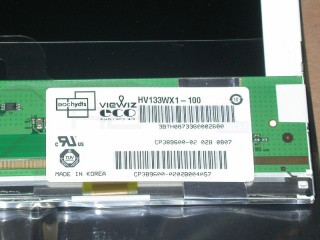

HV133WX1-100
HYDIS

Product description

HV133WX1-100 is a display manufactured by HYDIS. It has a resolution of 1280 x 800, brightness of 300 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 100 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 3.96
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 9S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 12000
Backlight Voltage Minimum: 28.8
Backlight Voltage Typical: 28.8
Backlight Voltage Maximum: 28.8
Backlight Current Minimum (mAh): 16
Backlight Current Typical (mAh): 16.8
Maximum Backlight Consumption: 3.27
Typical Backlight Consumption: 2.76
Backlight Driver Board: With LED Driver
Minimum Backlight Consumption: 3.25
Maximum Backlight Consumption (Watts): 3.9
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.82
Typical LCD Power Consumption: 1.2
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20347-040E-02
LCD Signal Interface Pins Pitch (mm): 0.4
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P1C6B-130A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.07
Dot pitch vertical: 0.22
Reflection: No
Display Type: FFS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 300
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 42
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.25/1.67 (Max.)(5/13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 13.3
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 178.8
Bezel Height: 181.8
Outline Vertical: 196.5
Outline Depth Max: 6.5000
Mounting: Side mounting holes (6-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (6-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 275
Typical Weight: 275
Maximum Weight: 275

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
