5.8" Inch TFT-LCD Display

LA058WQ1-SD01
LG Display

Home
TFT-LCD
LG Display
LA058WQ1-SD01

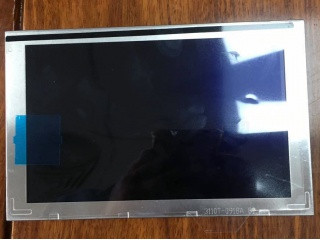

5.8" Inch TFT-LCD Display

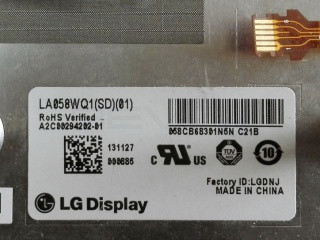

LA058WQ1-SD01
LG Display

Product description

LA058WQ1-SD01 is a display manufactured by LG Display. It has a resolution of 400 x 240, brightness of 470 cd/m2 and contrast of 900:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 13440 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 2.31
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 7S1P
Baklight Arrangement: 1 row
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 19.7
Backlight Voltage Typical: 21.8
Backlight Voltage Maximum: 23.9
Backlight Current Minimum (mAh): 85
Backlight Current Typical (mAh): 90
Backlight Current Maximum (mAh): 90
Maximum Backlight Consumption: 2.15
Typical Backlight Consumption: 1.85
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Blu interface pin pitch mm: 0
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.63
Typical LCD Power Consumption: 0.46
Signal Interface: FPC
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 400 x 240
Dot Pitch: 0.11
Dot pitch vertical: 0.32
Glare: Antiglare
Glare: 11
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 470
Contrast: 900
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 63
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 30
Bottom Viewing Angle: 30
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 10
Chromaticity: 0.32
Chromaticity: 0.35
light uniformity: 1.18/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 5.8
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 75.84
Bezel Height: 80.3
Outline Vertical: 97
Outline Depth Typical: 9.2

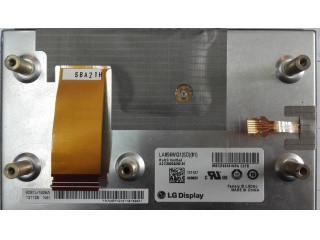

Mounting: Rear mounting Pole (5-M3)
Orientation: Vertical
Mounting Holes: Rear mounting Pole (5-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 213.5
Typical Weight: 213.5
Maximum Weight: 213.5

Temperature Specs

Minimum Operating Temperature: -40
Maximum Operating Temperature: 95
Storage Temperature Minumum: -40
Storage Temperature Maximum: 105
